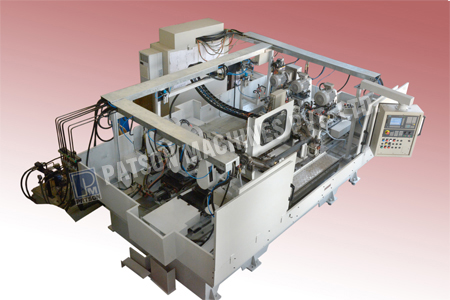

CNC Drill Tap SPM For RTB


Chassis Component Machines

We are Manufacturer, Supplier & Exporter of SPM ( Special Purpose Machines ) and our setup is situated in Pune, Maharashtra, India.

Machine CNC Drilling & Tapping Spm- Model 977
Component Twist Beam Welded Structure Assy.
Operation Drilling & Tapping of Camber plate, size M10X1.25p
Cycle time (Output/hr) 100 Sec. (36/hr.)
Machine Description Component is loaded manually in the fixture. Fixture is mounted on hydraulically operated shuttle slide. At drilling station 5 nos. hole will be drilled to camber plate from both side. Drilling cycle will be rapid feed-feed-rapid return. Then fixture moves to tapping station where 4 nos. tapping operation will be carried out. Tapping operation is pitch controlled. And fixture slide will return to home position.



Chassis Component Machines, CNC Drill Tap SPM For RTB
