CNC Milling SPM For RTB

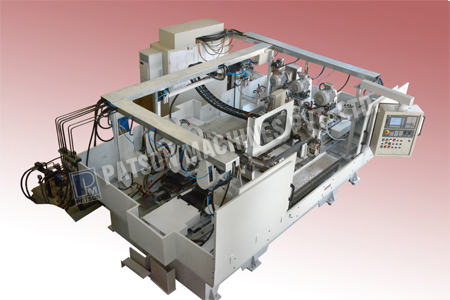

CNC Milling SPM for RTB

Machine

Milling & Deburring Spm - Model 976

Component

Twist Beam Welded Structure Assy.

Operation

Miling & Deburring of at both ends Camber plate

Cycle time(Output/hr)

120 Sec. (30/hr.)

Machine Description

Job is loaded in the fixture manually. Hydraulically clamped. An ISO50 milling spindle unit mounted on X and Z servo axis slide performs the facing operation in two pass on camber plate from both sides.


Y axis slide and one more spindle unit is provided to carry out deburring operation to the profile of camber plate using Y and X axis interpolation.
